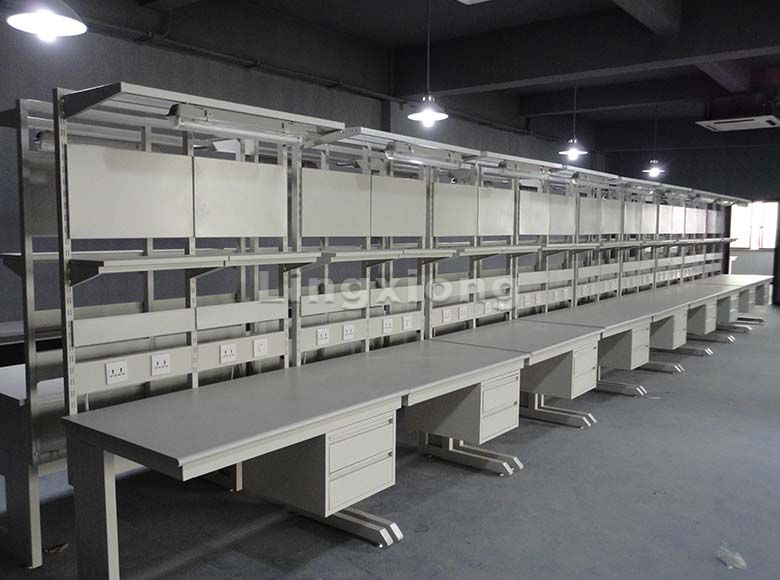

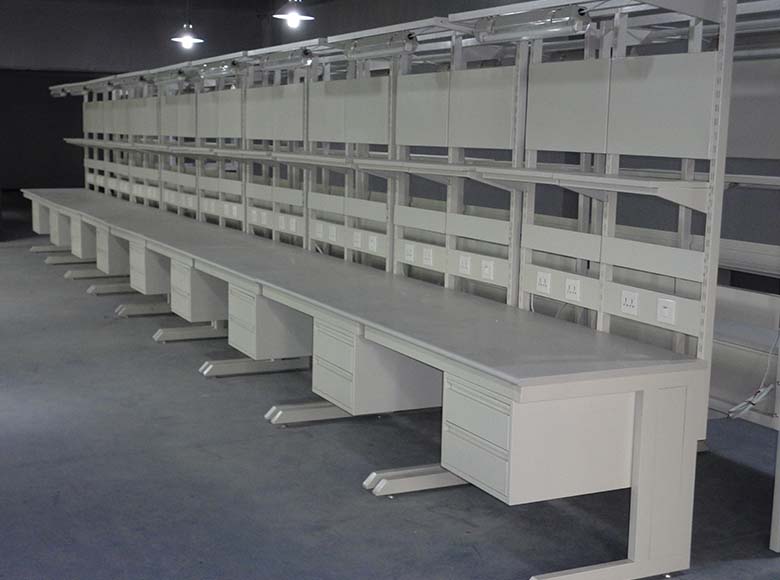

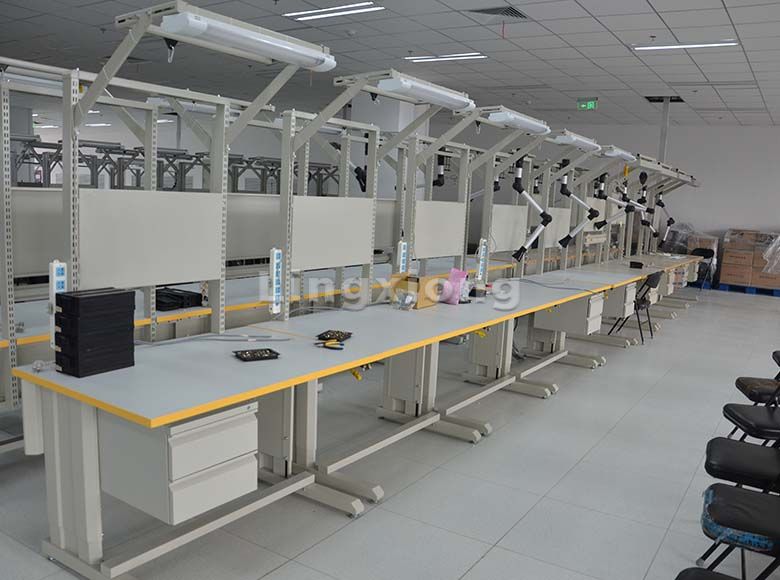

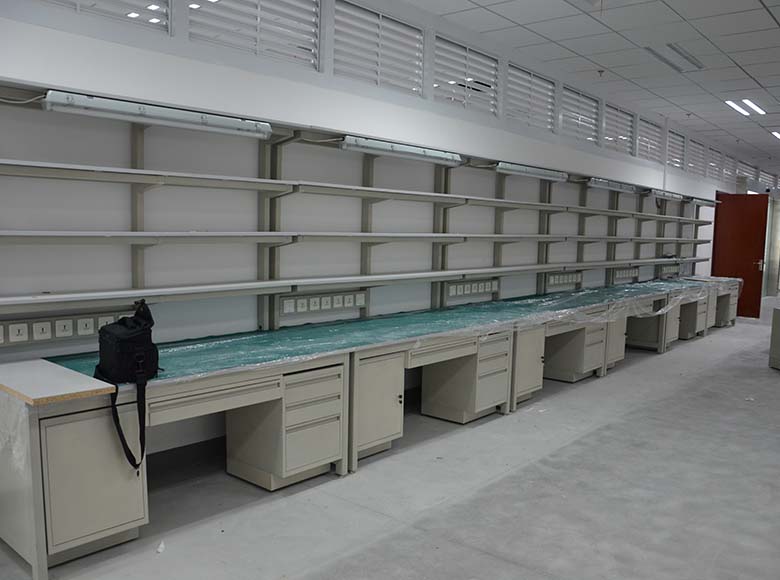

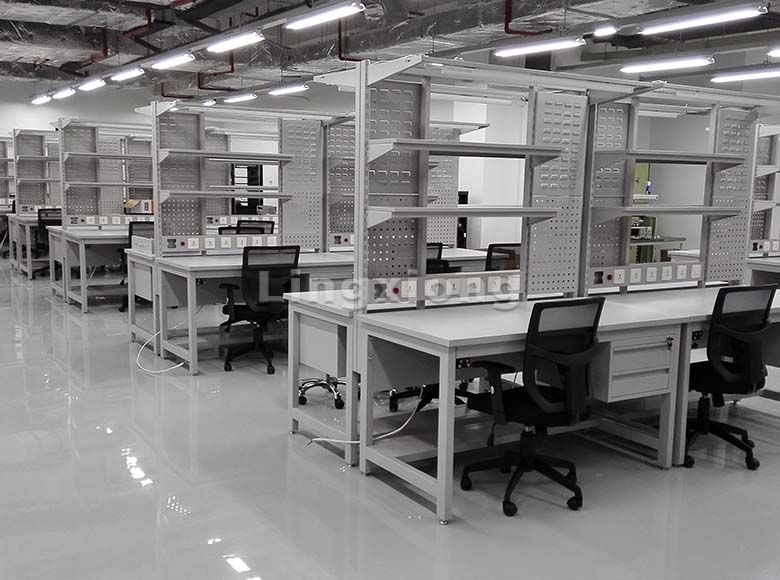

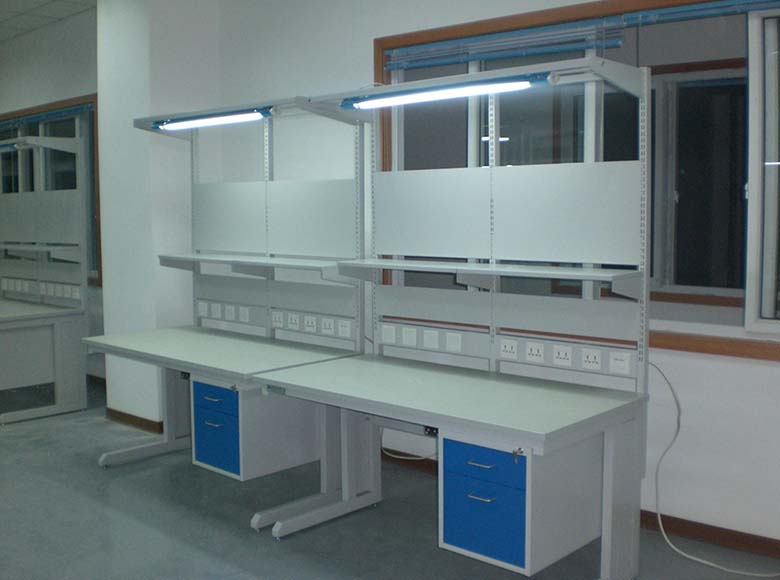

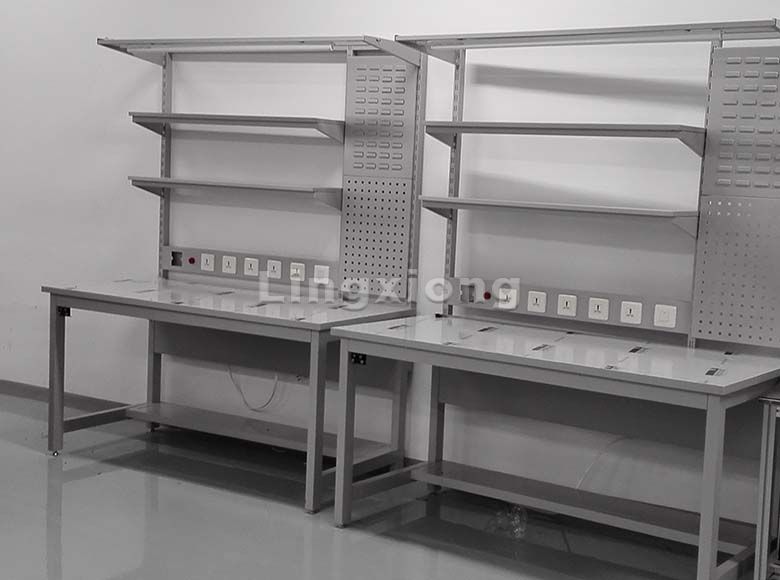

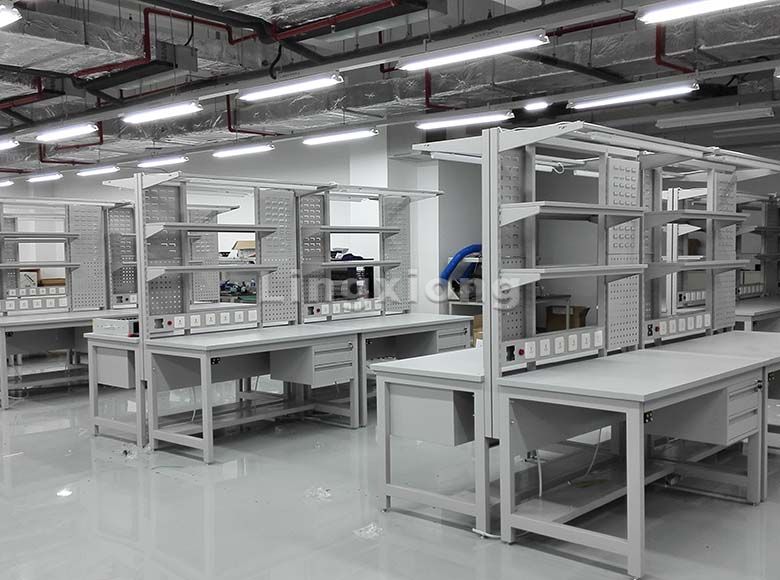

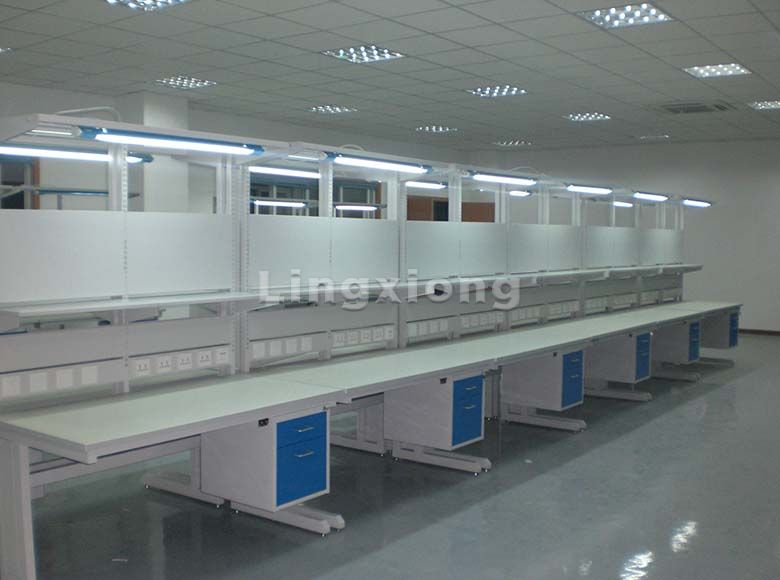

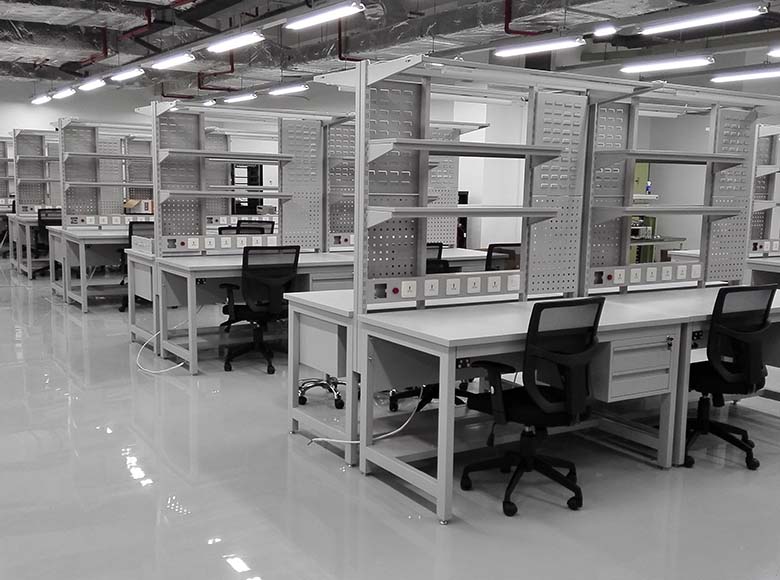

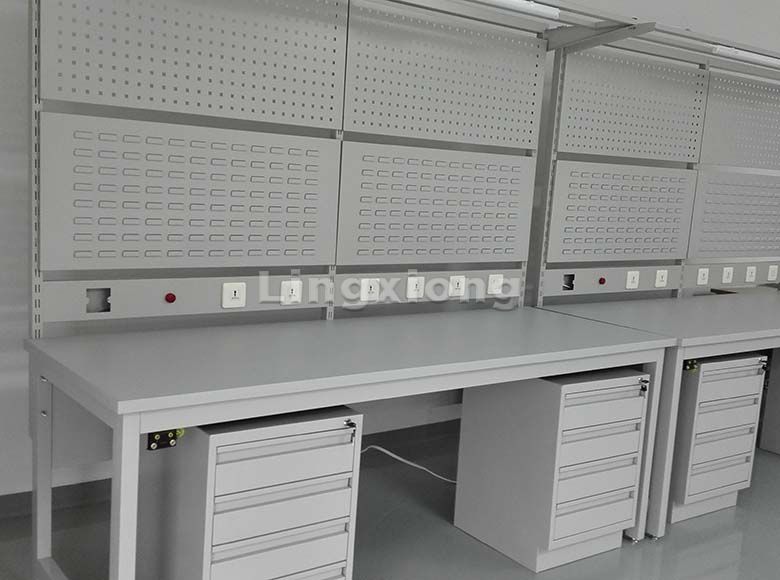

Antistatic Workbench (High Type )
- Countertop
- Use a 25mm thick E1 level environmental protection substrate to press a 0.7mm thick antistatic physical board, and treat it with a 2mm (± 5%) thick PVC hot melt waterproof edge banding. The edge of the edge band is rounded and modified. Or use 25mm thick E1 level environmental protection type trihydrogen board, and treat with 2mm (± 5%) thick PVC hot melt waterproof edge banding, the edge of the edge band is rounded and modified; 2mm thick antistatic rubber pad
- PVC for water-proof. 2.0mm anti-static rubber pad on top;Approved by SJ/T10694-2006, General specification for anti-static detection of electronic product manufacturing and application systems
- Antistatic performance
- It always maintains a stable surface resistance of 105-109Ω, and is a dissipative permanent antistatic countertop. It can effectively limit the position of static electricity, quickly discharge static charge, protect various precision instruments, and make the working space safe and efficient
- Drawer
- Adopt 1.0mm or 1.2mm thick first-grade cold-rolled steel plate after pickling and phosphating, and the surface is sprayed with epoxy resin powder for anti-corrosion treatment. There are three sections of guide rails and limit devices on both sides of the drawer
- Upper Frame
- Using 30 * 40 * 1.2mm thick high-quality steel square tube after pickling and phosphating, the surface is epoxy resin powder electrostatic spraying
- Under Frame
- 1. Adopt 40 * 60 * 1.5mm thick high-quality steel square tube after acid pickling and phosphating, and the surface is sprayed with epoxy resin powder for anti-corrosion treatment. 2. The leveling feet are attached at the connection between the steel frame and the ground, the height of which is greater than 30mm
- Hardware fittings
- The guide rails, all-steel elongated handles, metal connecting materials, etc. all use high-quality joint venture products
- Power socket
- Adopt a special multifunctional laboratory outlet. The socket has a security door, suitable for all kinds of instruments
- Illumination
- Philip integrative energy saving LCD light. 13.6W for 1.2mtr, 1100Lumen/10W for 0.9mtr, 900Lumen/3.6W for 0.3mtr, 300Lumen
- Cable trunk
- using 1.0mm or 1.2mm thick first-grade cold-rolled steel plate after pickling and phosphating, the surface of the epoxy resin powder is electrostatically sprayed and treated
