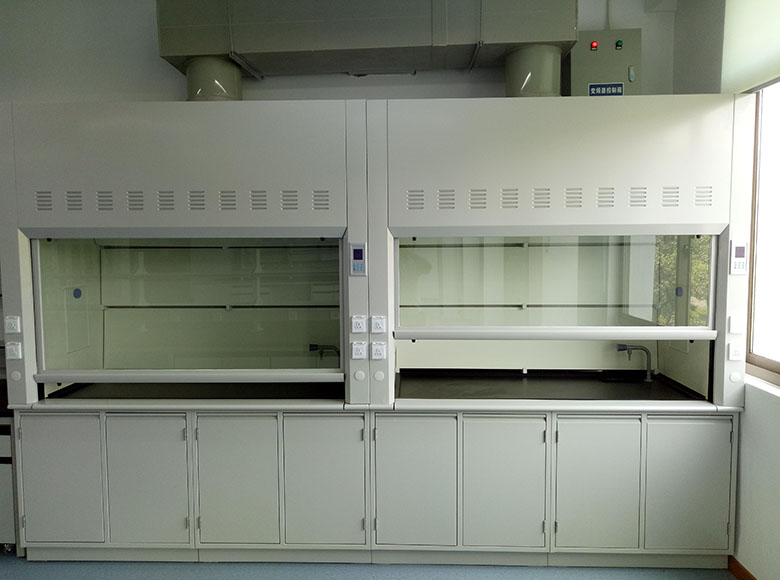

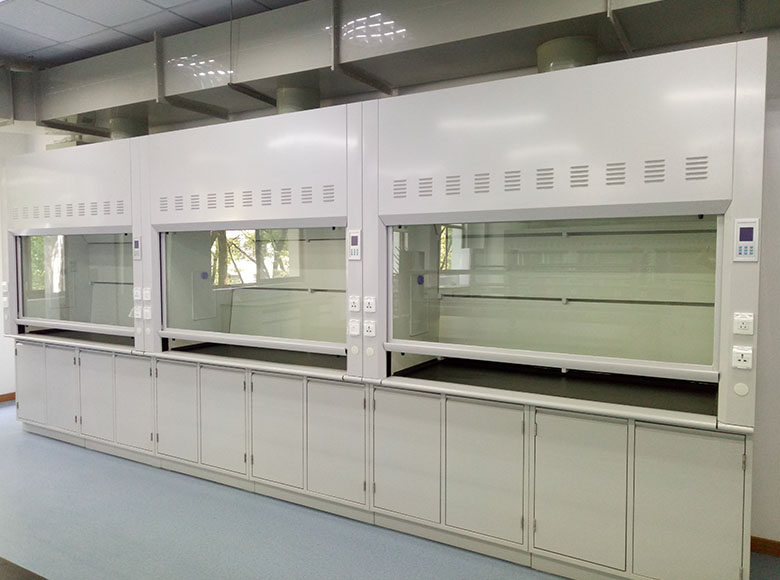

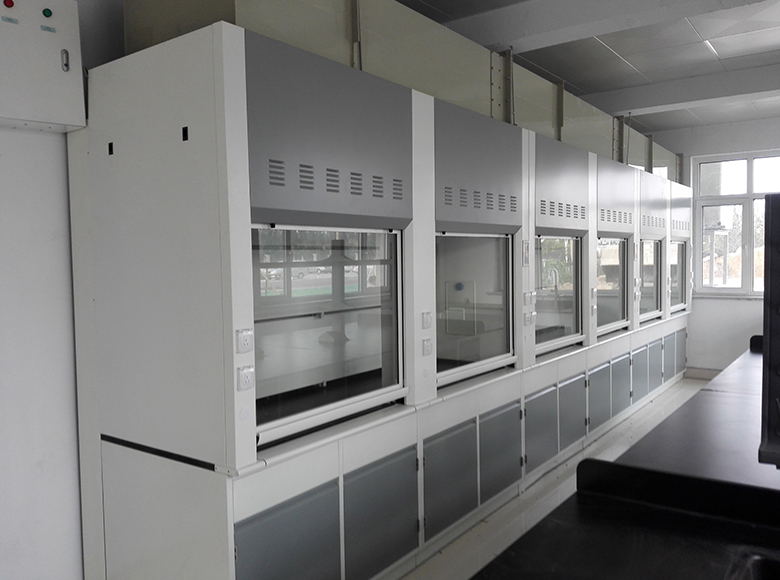

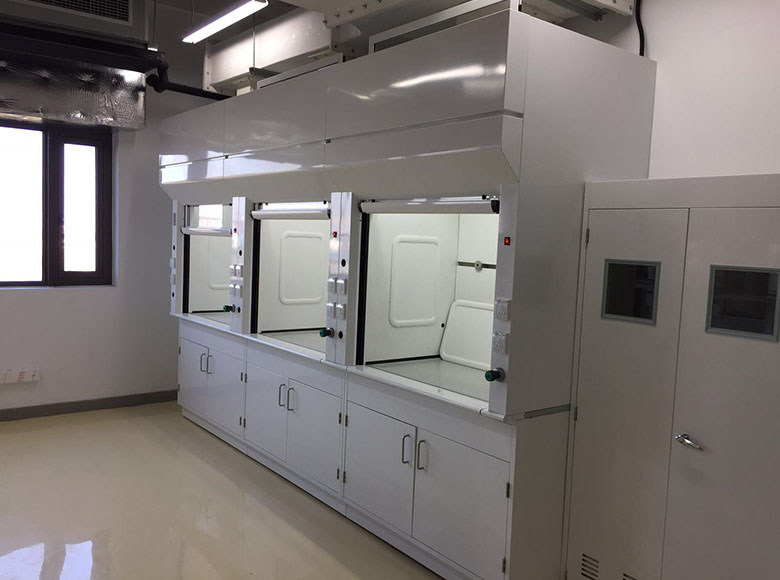

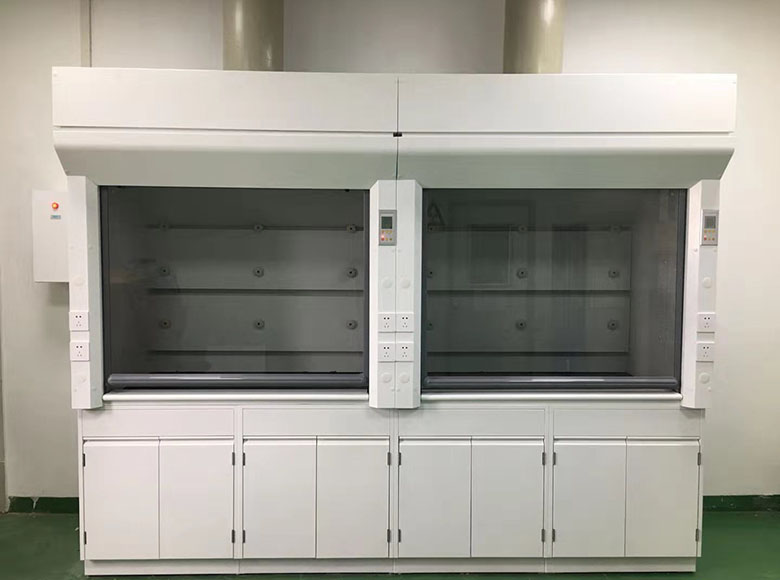

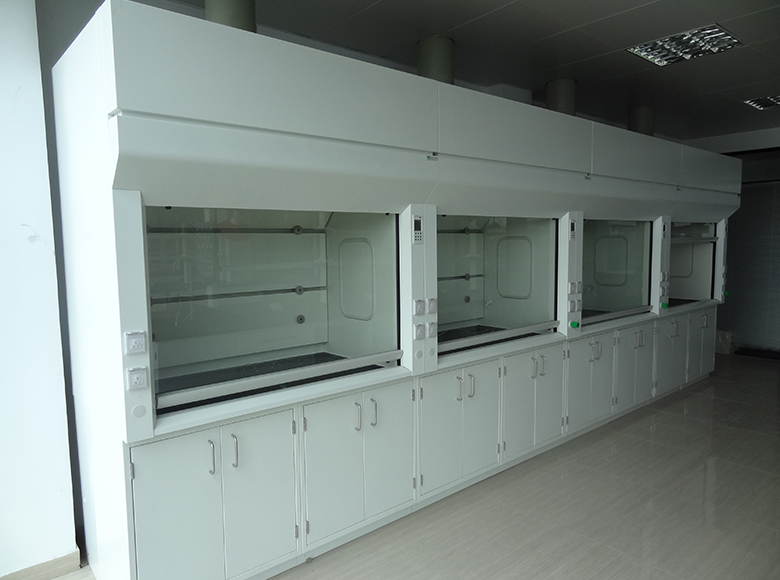

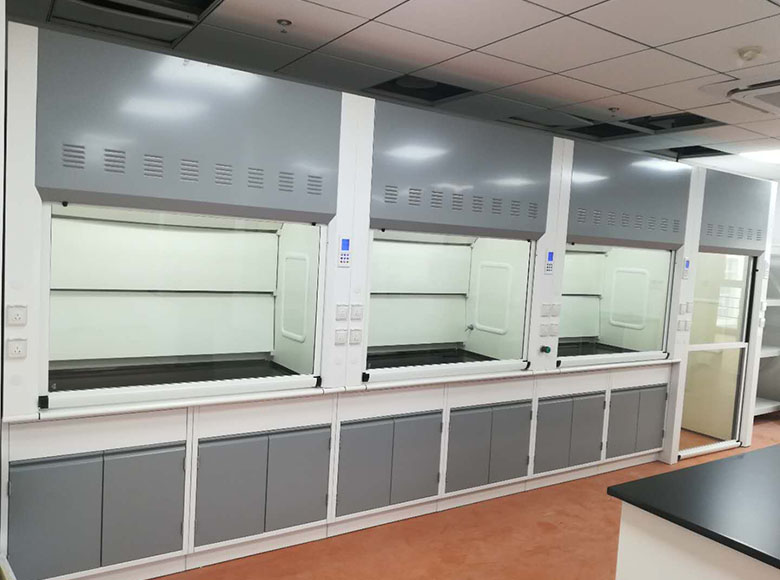

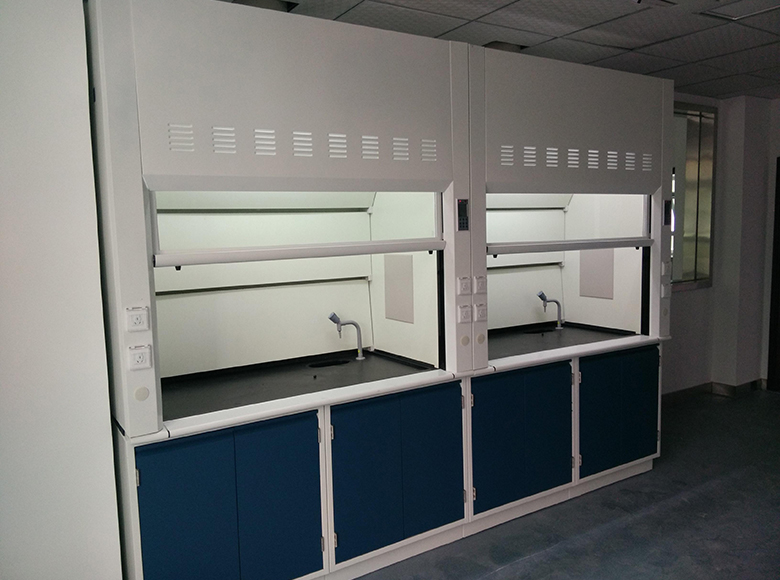

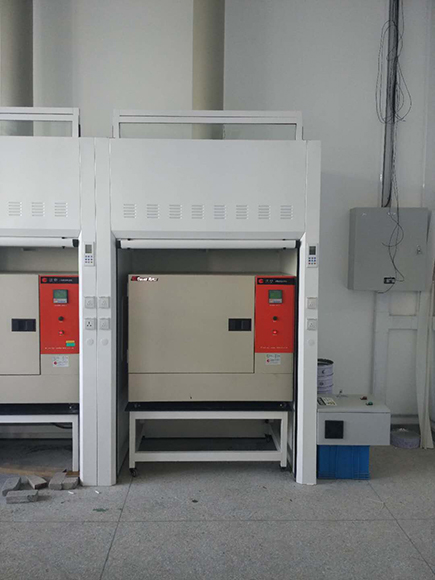

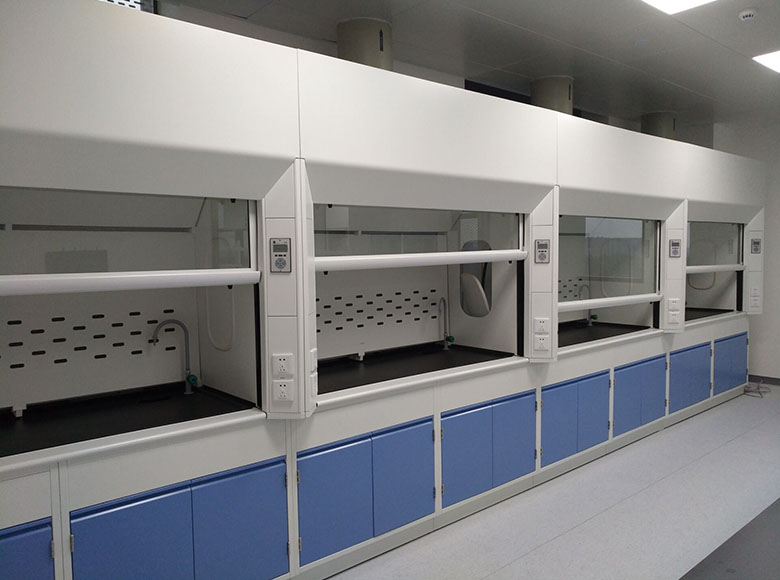

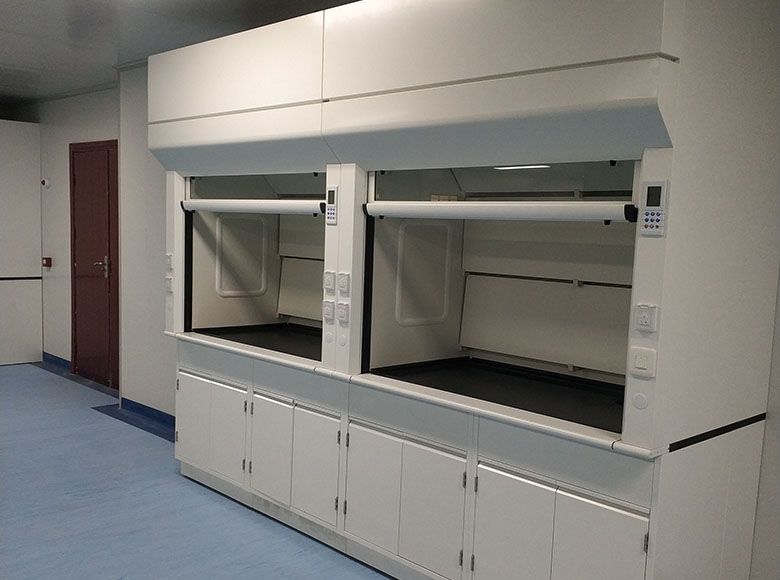

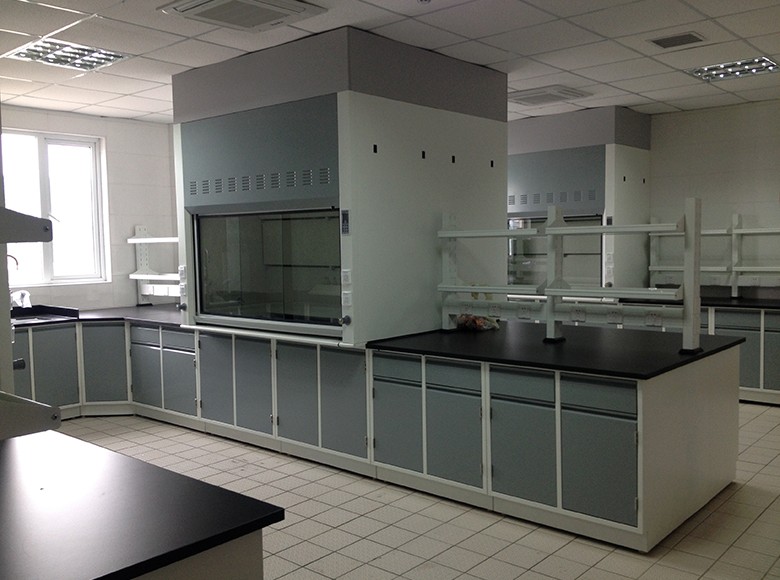

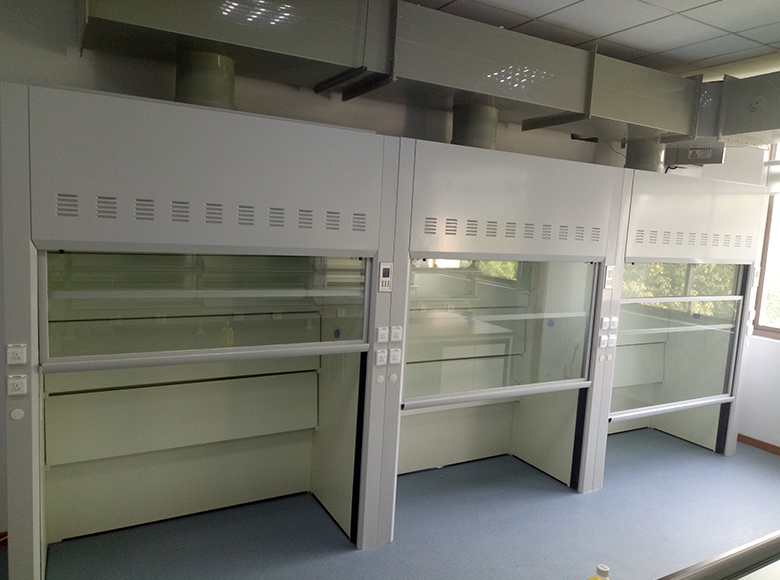

All Steel Fume Hood
- Outer dimension (mm)
- 1200(L)*850(D)*2350(H)
1500(L)*850(D)*2350(H)
1800(L)*850(D)*2350(H)
- Inner dimension (mm)
- 960(L)*700(D)
1260(L)*700(D)
1560(L)*700(D)
- Cabinets
- All-steel integrated cabinet. Adopt 1.0mm or 1.2mm thick first-grade cold-rolled steel plate after pickling and phosphating, and the surface of epoxy resin powder is electrostatically sprayed and anti-corrosive.
- Countertop
- 12.7 mm thick domestic brand laboratory special solid physiochemical board, resistance to acids and bases, anti-corrosion
- Deflector
- Adopt laboratory special 6mm thick double resistant board. The structure is three-stage type, which can effectively discharge gases with different specific gravity.
- Backboard
- Adopt laboratory special 6mm thick double resistant board.
- Roof board
- Adopt laboratory special 6mm thick double resistant board. Its structure has a pressure relief effect on the explosion
- Window
- Using 6mm thick tempered glass, stepless balanced lifting, can stay at any position
- Faucets
- Adopt the laboratory special faucet made in Taiwan, the main body is thick copper
- Sink
- Adopt Taiwan made acid-base PP cup groove
- Water & Gas cocks(option)
- Wall type remote control water, air valve and water and air nozzle, the main body is thick copper
- Illumination
- 40W fluorescent light
- Power socket
- Adopt a special multifunctional laboratory outlet. The socket has a security door, suitable for all kinds of instruments
- Control Panel
- Fan and lighting switch
